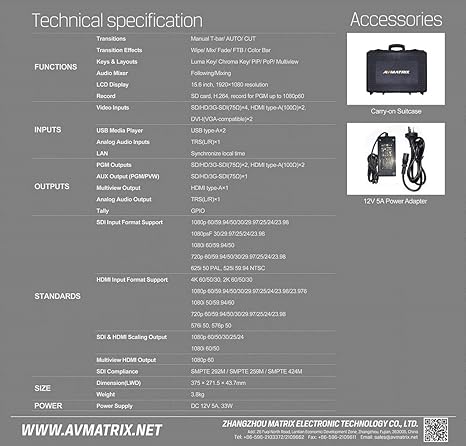

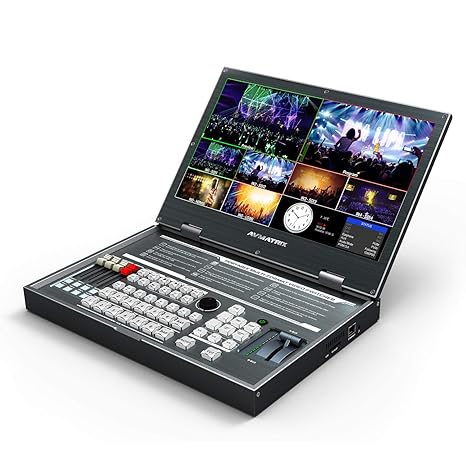

AV Matrix PVS0615 Portable 6 Channel Multi-format Video Switcher

£1,914.00

AV Matrix PVS0615 Portable 6 Channel Multi-format Video Switcher

£1,914.00

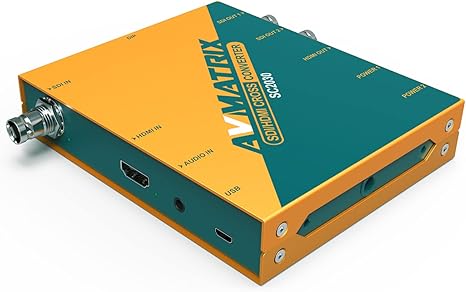

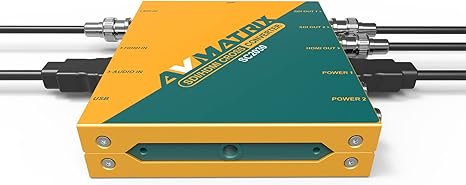

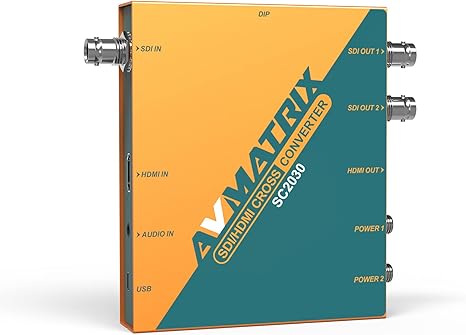

AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Signal Converter with DIP Switches Analog Audio Embedding

AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Signal Converter with DIP Switches Analog Audio Embedding

£197.00

Product Description Input: HDMI×1 or SDI×1, analog audio×1 Output: 3G-SDI×2, HDMI×1 Up/down scaling and frame rate conversion Analog audio Embedding HDMI/SDI Input automatic detection and configuration Control easily via the DIP switches USB is used for PC software control and power supply Dual threaded locking power, for redundant power...

Categories : AVMATRIX

Why Choose Us ?

Official Herschel stockist Australian warranty assistance & support Australian shipping & returns.Customer first experience environmentally focused

Returns

Return this product within 100 days if you change your mind. Get a refund/replacement & free return shipping if it arrives damaged or not as described

Shipping

Free if stated near price. $9.95 Australia wide (up to 10 items). $18.95 for Express Post (generally 1 business day).

Product Description

Input: HDMI×1 or SDI×1, analog audio×1
Output: 3G-SDI×2, HDMI×1
Up/down scaling and frame rate conversion
Analog audio Embedding
HDMI/SDI Input automatic detection and configuration
Control easily via the DIP switches
USB is used for PC software control and power supply
Dual threaded locking power, for redundant power supply
Detachable bracket design for wall mounting

SDI to SDI Scaling Conversion

SDI to HDMI Scaling Conversion

HDMI to HDMI Scaling Conversion

HDMI to SDI Scaling Conversion

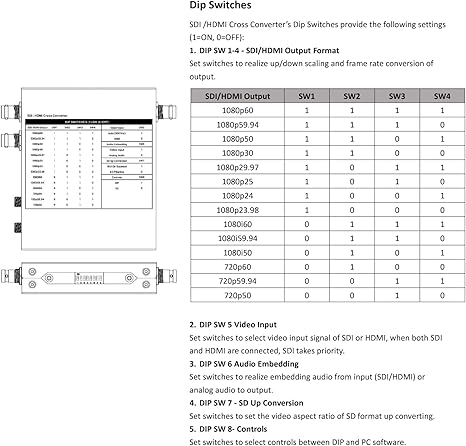

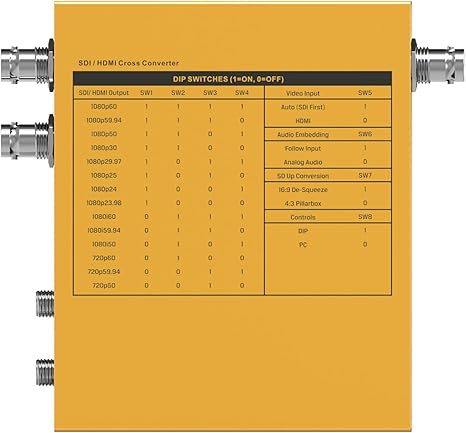

Easy Control over DIP Switches and PC

Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.

Reduntant Power

The use of premium components coupled with dual redundant power supplies ensures

device works fine even when the mainpower supply encounters problems.

And the 1/4 inches hot shoe slot perfect fit various installations.

Audio Embedding

lt features embedding an external analog audio to both SDI & HDMl outputs.

The most commonly used 3.5mm interface makes it easy to add external audio signalsto SDI/HDMI video output.

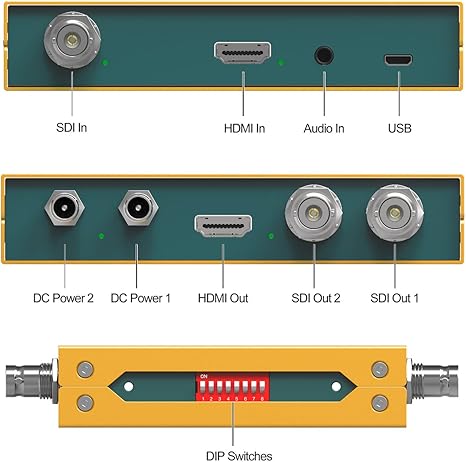

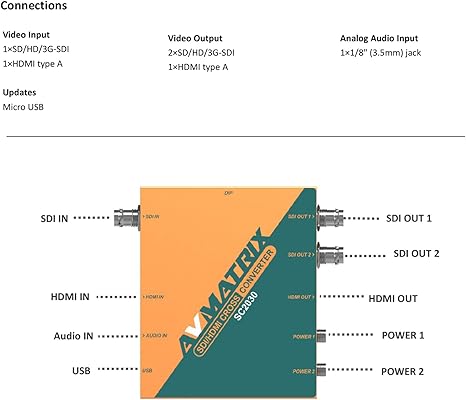

HDMI Video Input	HDMI type A ×1
SDI Video Input	SD/HD/3G-SDI ×1
Analog Audio Input	1/8" (3.5mm) jack ×1
SDI Video Outputs	SD/HD/3G-SDI ×2
HDMI Video Output	HDMI type A ×1
SDI Input Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98 1080Psf 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50. 525i 59.94
SDI Video Rate	SD/HD/3G-SDI
SDI Compliance	SMPTE 292M, SMPTE 259M, SMPTE 424M
SDI Color Space and Precision	YUV 4:2:2
HDMI Input Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 576p 50, 576i 50 480i 60/59.94
HDMI Input Color Space	RGB 4:4:4,YUV 4:2:2, YUV 4:4:4
SDI/HDMI Output Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50
Dimension (LWD)	125.5mm × 104mm × 24.5mm
Weight	485g
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
