Features

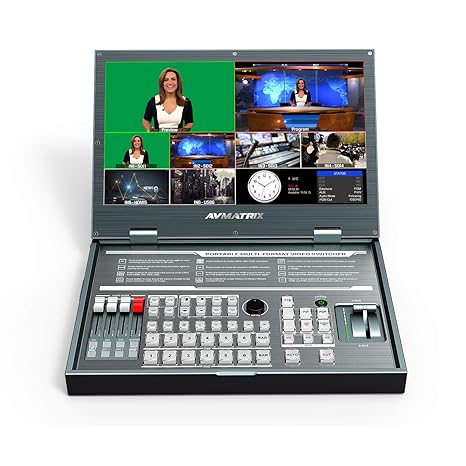

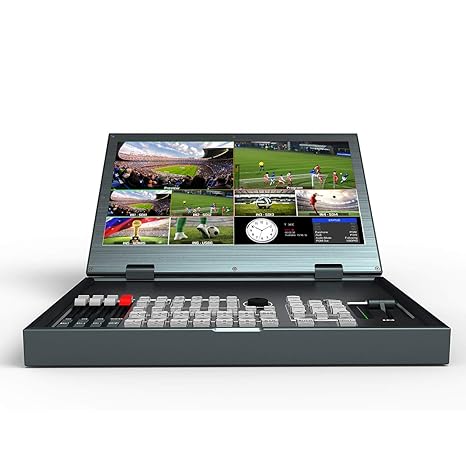

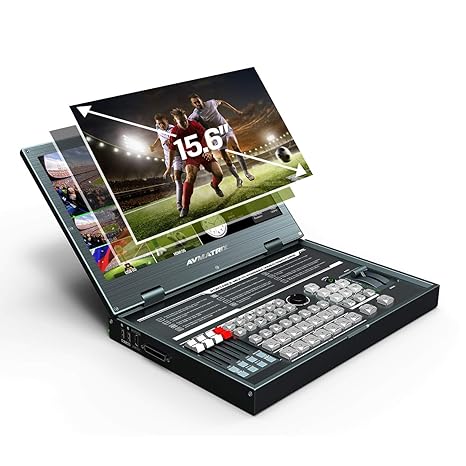

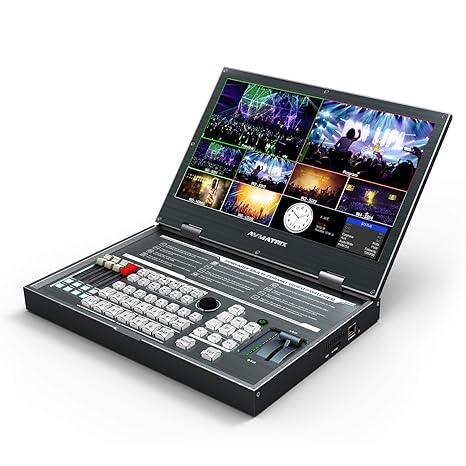

Portable All-In-One Design with 15.6 inch FHD LCD display

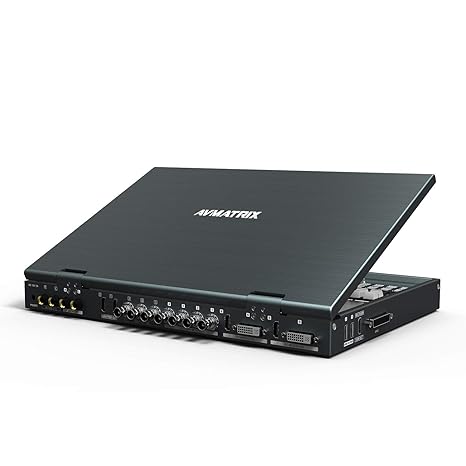

6 channel inputs:4×SDI & 2×DVI-I/HDMI/VGA/USB
3×SDI PGM out(1×AUX), 2×HDMI PGM & 1×HDMI multiview out
Input format auto-detected and PGM/AUX output format selectable
T-Bar/ AUTO/ CUT transitions & Mix/ Fade/ Wipe effects
Luma Key/ Chroma Key for virtual studio
PIP/POP window size and position adjustable
Record PGM video to SD card, up to 1080p60
Audio mixer: TRS audio & SDI, HDMI, USB embedded audio

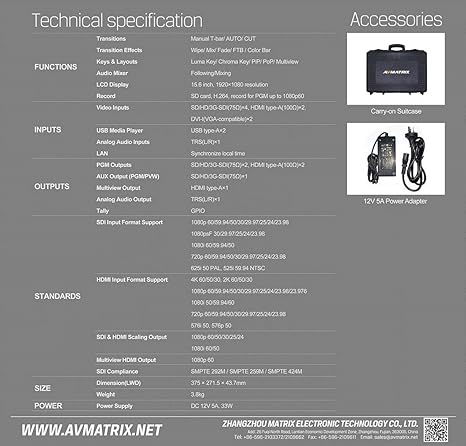

Inputs
Video Inputs: 4×SD/HD/3G-SDI, 2×HDMI
SDI Input Format:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50 PAL, 525i 59.94 NTSC
HDMI Input Format:
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
576i 50, 576p 50
SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
Outputs
PGM Outputs: 2×3G/HD-SDI; 1×HDMI
AUX (PVW/PGM) Output: 1×HD/3G-SDI
PGM Output Format: 1080p 60/50/30/25/24; 1080i 60/50
Multiview Output: 1×HDMI
Multiview Output Format: 1080p 60
Others

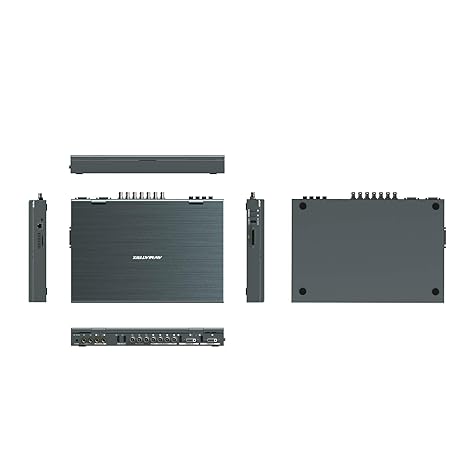

Dimension: 375×271.5×43.7mm
Weight: 3.8kg
Accessories
1×Power Supply (DC12V 5A)
1×User Manual
