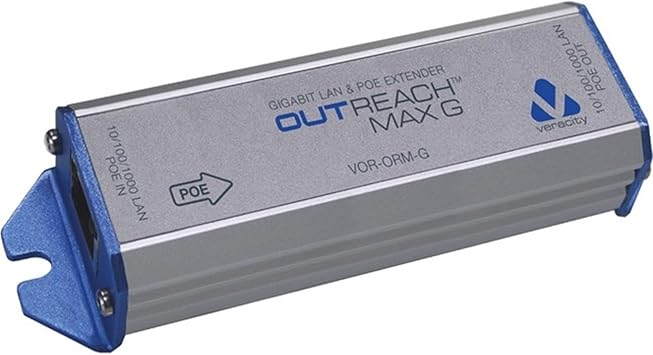

Veracity Outreach Max G PoE Extender - 1 Gigabit Ethernet Input Port(S) - 1 PoE Output Port(S) - 90 W

Power over Ethernet and network range extender Outreach Max g extends Gigabit Ethernet to 200 metres with Full Poe pass-through, ideal for deployment of wireless access points and IP cameras.Outreach Max g easily overcome the distance limits of Poe networks simply connecting an Outreach Max g in line with the network cable instantly doubles the range from 100 metres (328 ft) to 200 metres (656 ft) with Poe.Cable lengths in Ethernet networks are limited To 100 metres (328 ft), which is a Serious restriction for many security installations. Outreach Max g enables installers to overcome this network limitation. Simply connecting an Outreach Max g in line with the network cable instantly doubles the range from 100 metres to 200 metres (656 ft).simple to install fitting Outreach Max g is simple because no set-up is required. Its only connections are two RJ45 Network Ports, Both of which immediately self-configure for 10Base-T, 100Base-TX or 1000BASE-T operation. Poe power is automatically transferred between connected equipment. No local power supply connection is needed, because Outreach Max g is powered by PoE.Outreach Max g can easily be located anywhere along the network cable, as long as no single length of cable is greater than 100 metres. For example, to extend the network connection between a PoE switch and an IP camera to 170 metres, an Outreach Max g could be installed 90 metres from the switch. A further 80 metres of cable would run from the Outreach Max g to the camera.Max Poe power Outreach Max g enables network range extension to all Poe devices that are compatible with IEEE 802.3Af, which is the universal Poe standard for low power network devices such as fixed IP cameras.In addition, Outreach Max g is compatible with Poe Plus (IEEE 802.3at) and higher power 4-pair Poe (IEEE 802.3BT) up to 90W.Note that Outreach Max g is designed for connection to Poe compatible.
