Tripp Lite PV3000HF PV 3000W 12V DC to AC Permanent Mount Inverter

Product description

Are you tired of filling heavy gas cans? Are you looking for a clean, reliable alternative to a portable generator? The PV3000HF PowerVerter® Ultra-Compact Inverter is the solution you seek! The PV3000HF powers the equipment you commonly use at home or work—power tools, portable lighting, notebook computers and more—wherever life takes you. It's the ideal power solution for RVs, commercial and fleet vehicles, emergency vehicles, remote sites and any other application that requires a clean, quiet AC power source. The PV3000HF efficiently converts DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. And unlike portable generators, the PV3000HF requires no fuel and produces no noise or fumes. With its 3000-watt capacity and 4 AC outlets, this inverter can power multiple items of equipment with ease. The PV3000HF can also deliver up to 6000 watts instantaneously to support power-hungry equipment start-ups. The PV3000HF comes with a free Remote Control Module (Tripp Lite model APSRM4) and 25-ft. cable, enabling you to control the inverter from anywhere inside your vehicle.

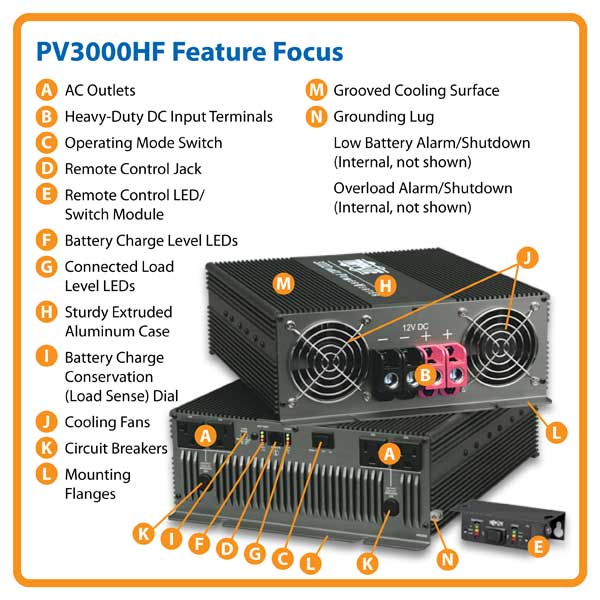

Feature Focus

Tripp Lite's PV3000HF Ultra-Compact Power Inverter Offers:

• Computer-grade AC power from a vehicle battery
• 3000 watts continuous output power; up to 6000 watts instantaneous power
• Clean, quiet operation—no fumes or noise
• Compact design; simple installation
• 1-year warranty

Portable Power Whenever You Need it
Click here for a larger image Simple Installation and Equipment Connection
Click here for a larger image

Computer-Grade Output Power

The PV3000HF efficiently converts DC power from a vehicle battery into 120V AC power for any type of equipment, from heavy-duty drills, saws and pumps to computers and sensitive monitoring equipment. The PV3000HF provides safe, stable, AC output power to help connected equipment perform at its peak. A frequency control feature ensures that devices dependent on tightly regulated AC line frequency, such as computers, VCRs and DVD/CD players, receive clean computer-grade power.

Extended Peak Surge Power

Many tools, appliances and printers require extra power for start-up. The PV3000HF accommodates these peak surge demands by providing up to 200% more output power than its continuous rating, delivering 6000 watts for up to 10 seconds to support power-hungry equipment start-ups and motor cycling requirements.

Diagnostic LEDs

The PV3000HF features two sets of diagnostic LEDs. Three battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries. Three connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment.

Automatic Overload Shutdown

To prevent damage to the inverter and connected equipment, the PV3000HF will shut down automatically if an overload is detected at the inverter outlets. The red Load Level Indicator LED will flash to alert you that an overload has occurred.

Efficient and Safe for Batteries

With its 94% efficiency rating, the PV3000HF maximizes battery performance to run connected equipment longer. It also features a Load Sense (battery charge conservation) setting to prevent overtaxing your batteries. An automatic low-battery shutdown feature ensures you'll always have sufficient battery power available to start your vehicle.

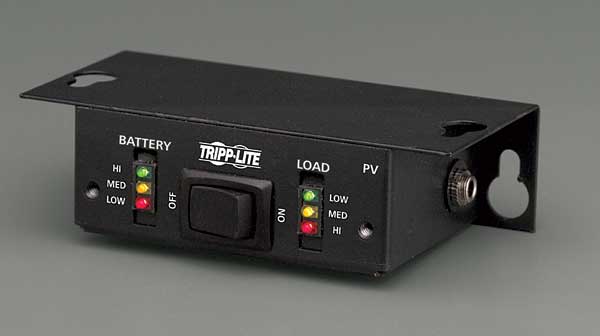

APSRM4 Remote
Click here for a larger image

Rugged Construction

The PV3000HF features an all-metal housing that's built to withstand vibration and impact—ideal for use at remote worksites, in trucks, RVs and other vehicles, on boats or anywhere that reliable AC power is needed. The housing is constructed with a grooved surface to promote more efficient cooling.

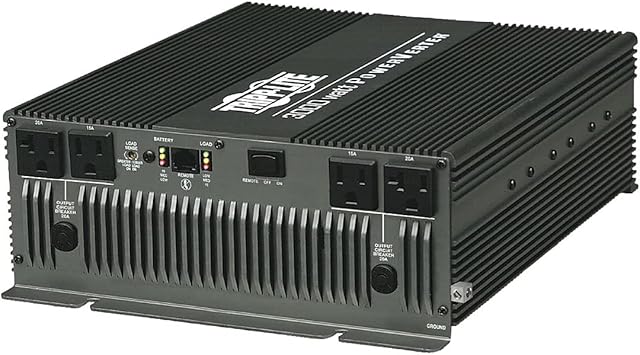

Simple Installation and Equipment Connection

The PV3000HF features integral mounting flanges for safe, permanent installation on any rigid, horizontal surface, such as the bed of a pickup truck. Connecting the PV3000HF to your battery system is quick and easy with readily available user-supplied cables. AC power is provided to connected equipment via four AC receptacles on the front of the unit. The PV3000HF is also equipped with an RJ45 remote control jack. When used with the included 25-ft. cable and Remote Control LED/Switch Module (Tripp Lite model APSRM4), this jack enables you to control and monitor the inverter from virtually anywhere within a vehicle.

Peace of Mind

The PV3000HF comes with a 1-year product warranty and a rapid-response repair/replacement policy that's unmatched in the industry.

Also Available

Tripp Lite manufactures a full line of power and connectivity solutions—UPS systems, power distribution units, surge suppressors, cables and connectivity solutions, rack enclosures and more—for every application, from the desktop to the datacenter.

Technical Specifications

Click here for a larger image Model: PV3000HF Voltage compatibility: 12 VDC Frequency compatibility: 60 Hz Output voltage: 120 VAC Output capacity (continuous): 3000 watts Output capacity (DoubleBoost): 6000 watts/10 seconds Overload protection: Output circuit breaker Cooling method: Dual fans Input connection: 4 x DC input terminals (user supplies cables) Outlet quantity/type: 2 x 5-15/20R
2 x 5-15R Switches/LEDs/alarms: 3-positon On/Off/Remote switch
6 x diagnostic LEDs
Low voltage alarm/automatic shutdown Dimensions (HWD): 4.0 x 10.5 x 13.5 in. Weight: 13.2 lbs. Material of construction: Aluminum

What's in the Box

• PV3000HF PowerVerter® Ultra-Compact Inverter
• APSRM4 Remote Control LED/Switch Module
• 25-ft. Remote Cable

Equipment Sizing Guide*

The PV3000HF can be used to power a wide range of equipment, including:

Power Tools Pumps Audio/Video Appliances Mobile Office Finishing Sander (200-225w) 1/6-hp Submersible Sump Pump (1200/800w) Game System (10-200w) Can Opener (200w) Battery Charger (25w) Bench Grinder (240-1000w) 1/4-hp Submersible Sump Pump (1300/900w) VCR/DVD Player (50w) 3-Speed Fan—12 in. (250w) Inkjet Printer (100w) 1/4-in. Drill (250w) 1/3-hp Submersible Sump Pump (1600/1050w) CD Changer/Mini System (50w) Mixer/Blender (200-400w) Laptop Computer (75-150w) Heat Gun (500-1500w) 1/2-hp Submersible Sump Pump (1400w) LCD TV—13-19 in. (50-100w) Food Processor (400w) Fax Device (150w) Jigsaw (450-600w) LCD TV—25-36 in. (120-135w) Portable Vacuum (800w) Computer/Monitor (250w) Standard Reciprocating Saw (450-600w) LCD TV—43-60 in. (200-250w) Toaster Oven (1200w) Portable Laser Printer (350w) Disk Grinder (600w) Stereo Amplifier (240w) Coffeemaker (800-1200w) 1/2-in. Reversible Drill (700w) Microwave (600-1800w) 10-Gallon Wet/Dry Vacuum (1000w) Circular Saw (800-1000w) Router (500-1800w) 14-in. Chain Saw (1200-1600w)

*Based on typical wattage or wattage range. For sump pumps, wattages reflect startup/continuous operation wattage.

Keep Your Equipment Powered with Tripp Lite

PV1000HF PowerVerter® Ultra-Compact Inverter

The PV1000HF converts DC (battery) power into 120V AC (household) power to run any type of equipment. With its 1000-watt capacity, the PV1000HF efficiently powers TVs, DVD players, game systems, computers, microwaves, coffeemakers, tools and pumps. Provides 2000-watt instantaneous power to support equipment start-up. Four standard 5-15R outlets deliver power to connected equipment. Compact, lightweight metal case with integrated mounting flanges provides multiple installation options. 1-year warranty.

PV1800HF PowerVerter® Ultra-Compact Inverter

The PV1800HF converts DC (battery) power into 120V AC (household) power to run any type of equipment. With its 1800-watt capacity, the PV1000HF efficiently powers TVs, DVD players, game systems, computers, microwaves, coffeemakers, tools and pumps. Provides 3600-watt instantaneous power to support equipment start-up. Four standard 5-15R outlets deliver power to connected equipment. Compact, lightweight metal case with integrated mounting flanges provides multiple installation options. 1-year warranty.

PV2000FC PowerVerter® Plus Heavy-Duty Inverter

The PV2000FC efficiently converts DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. With its 2000-watt capacity, the PV2000FC powers heavy-duty loads like drills, saws and pumps with ease. Two standard 5-15R outlets deliver power to connected equipment. OverPower™ and DoubleBoost™ capabilities provide extra power when required for heavy loads and power-hungry equipment start-ups. Rugged moisture-resistant polycarbonate housing stands up to harsh environments. 1-year warranty.

PV375 PowerVerter® Ultra-Compact Inverter

The PV375 converts DC (battery) power into 120V AC (household) power for notebook computers, cell phones, music players and more. Provides 375 watts continuous power and 600 watts of instantaneous power to support equipment start-up. Convenient cigarette lighter plug for connection to vehicle battery. Two standard 5-15R outlets deliver power to connected equipment. Compact, lightweight, all-metal case. 1-year warranty.

P022-001 18AWG Power Extension/Adapter Cable—1 ft.

Attaches to an existing power cord to extend its length by 1 ft. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Standard 5-15R receptacle and 5-15P plug. Lifetime warranty.

P022-001-2 18AWG Power Extension/Adapter Y Cable—1 ft.

Enables two devices to be powered from a single wall, power strip or surge suppressor outlet. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Two standard 5-15R receptacles; 5-15P plug. Lifetime warranty.
