Rsrteng IPC-9800ADHS Plus CCTV Camera Tester 7-inch IPS Touch Screen Monitor CCTV Tester with HDTVI/HDCVI / AHD/SDI / IP Camera Support POE WiFi 4K H.265 HDMI 8GB TF Card
Rsrteng IPC-9800ADHS Plus CCTV Camera Tester 7-inch IPS Touch Screen Monitor CCTV Tester with HDTVI/HDCVI / AHD/SDI / IP Camera Support POE WiFi 4K H.265 HDMI 8GB TF Card
Couldn't load pickup availability
Product Description
Rsrteng IPC-9800ADHS plus+ IP Camera Tester 7 inch IPS Touch Screen Monitor CCTV Tester Support AHD/CVI/TVI/SDI/CVBS/IP Camera Test

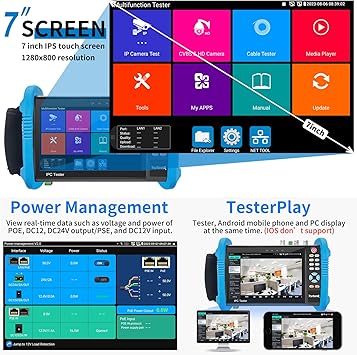

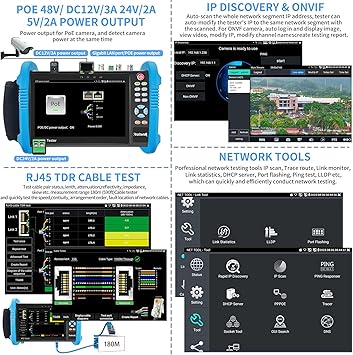

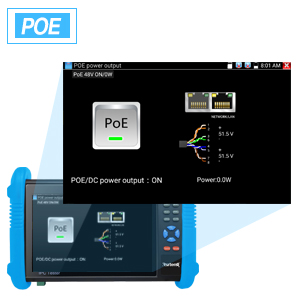

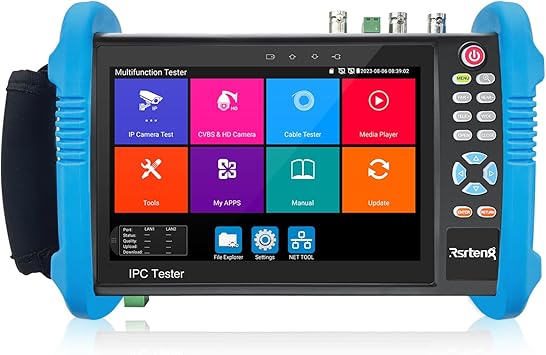

The Rsrteng IPC-9800ADHS plus+ 4K camera tester is used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and security system. The tester uses a 7-inch 1920x1200P high-definition touch screen, so the operation becomes simple and fast. Support max 12MP IP camera and max 4K 8MP coaxial HD CVI TVI AHD SDI camera test; Suppot RJ45 TDR Test, POE, W-I-F-I; DC 5V.2A/12V.3A/24V.2A power output; Multiple professional tests are built-in APP, compatible with more than 90% of existing brand cameras. Use it to make your installation process simple and efficient.
SUPPORT CAMERA TYPE
- IP camera test:

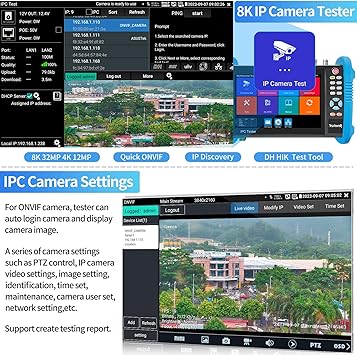

Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.
- Coaxial HD camera test:

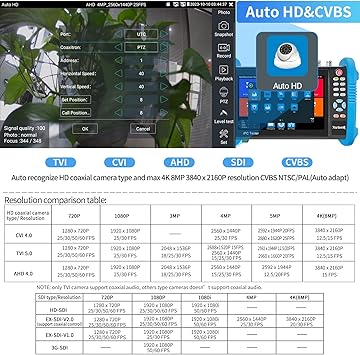

Max 4K 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu.
- CVBS camera test:
1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc. Support PAL/NTSC color bar test.
- AXIS IP cameras test：
Install the APP "Axs test tool" suitable for AXIS testing through automatic update before testing.
