Rolls RM67 Mic/Source Mixer

Product Description

Rolls RM67 Mic Source Mixer

From the Manufacturer

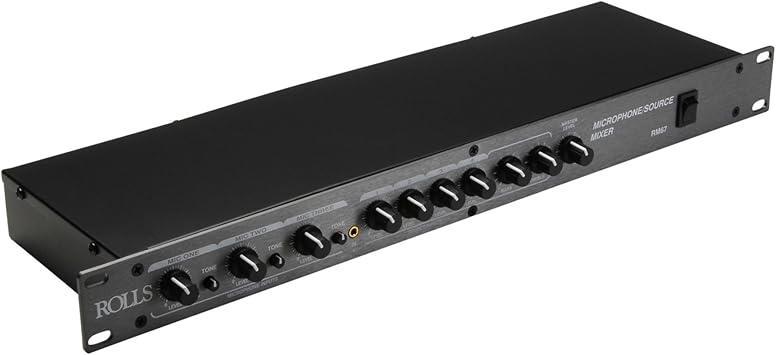

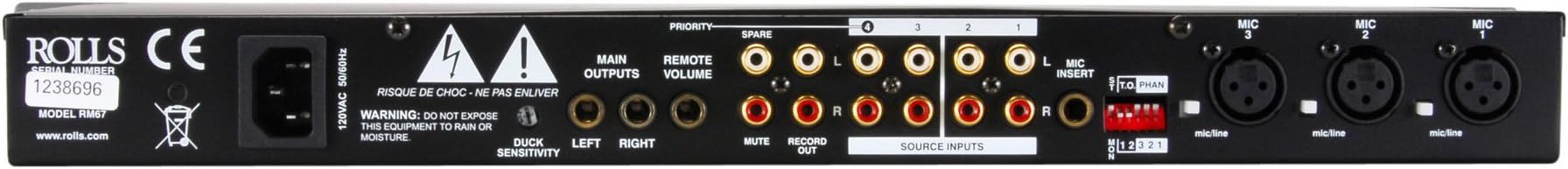

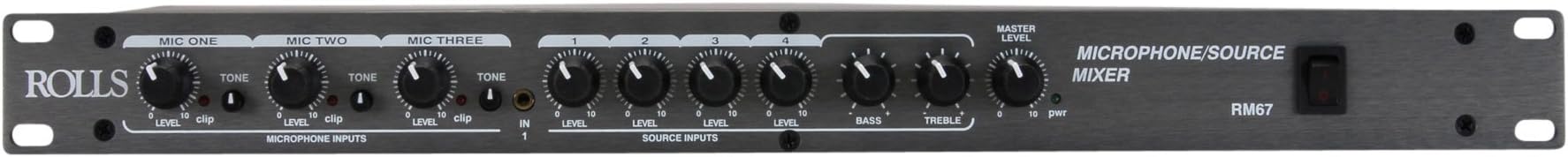

The rolls rm67 mic/source mixer is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR microphone inputs have mic/line level switches, a send/return insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable duck sensitivity is available on one microphone for paging, and on one source input for use on a jukebox. Telephone system, etc. Each microphone input has a level and tone control, and each source input has a level control. Bass and treble controls have been provided for all the sources, and a master output level control adjusts the level of all mixed signals. Source one has an added front-panel 3.5mm Input. A pre-master RCA output has been provided for recording, and a remote volume output the rolls rm67 mic/source mixer is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR microphone inputs have mic/line level switches, a send/return insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable duck sensitivity is available on one microphone for paging, and on one source input for use on a jukebox. Telephone system, etc. Each microphone input has a level and tone control, and each source input has a level control. Bass and treble controls have been provided for all the sources, and a master output level control adjusts the level of all mixed signals. Source one has an added front-panel 3.5mm Input. A pre-master RCA output has been provided for recording, and a remote volume output jack is provided for connection to a 100k ohm linear taper potentiometer and used as an external master level control.
