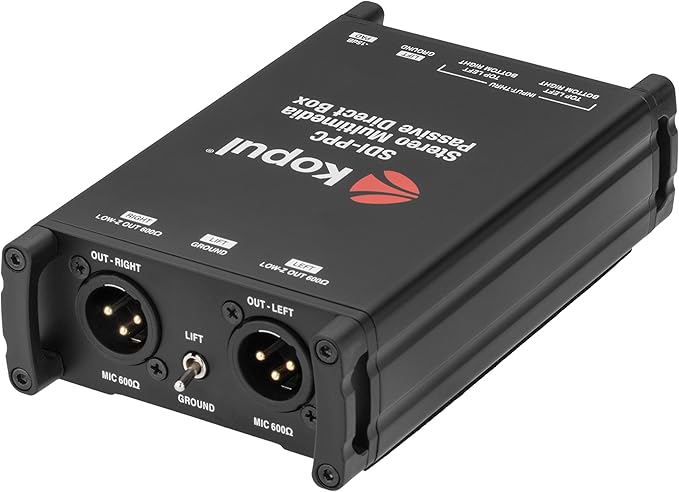

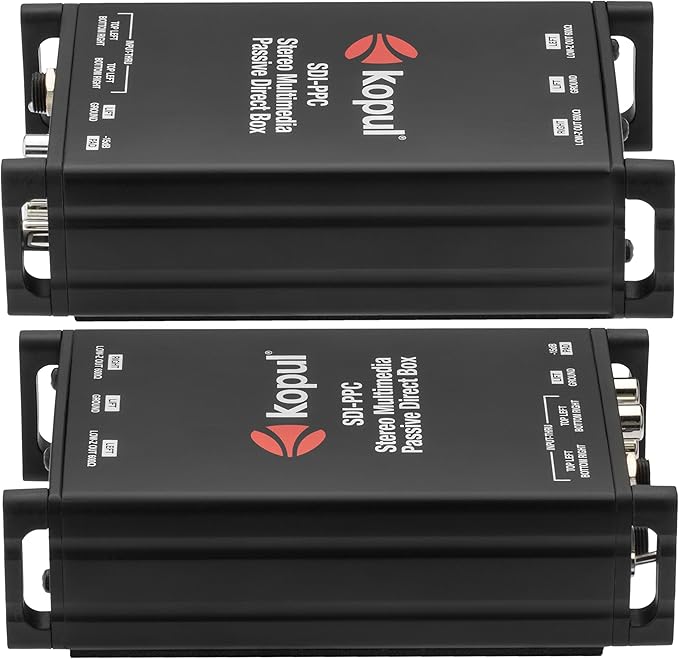

Kopul SDI-PPC Stereo Multimedia Passive Direct Box

The Kopul SDI-PPC is a stereo, passive DI Box designed to bridge the gap between consumer-level audio sources and pro audio destinations. With this unit, you can route the audio of instruments, smartphones, tablets, receivers, and more into mixing consoles or PA systems.

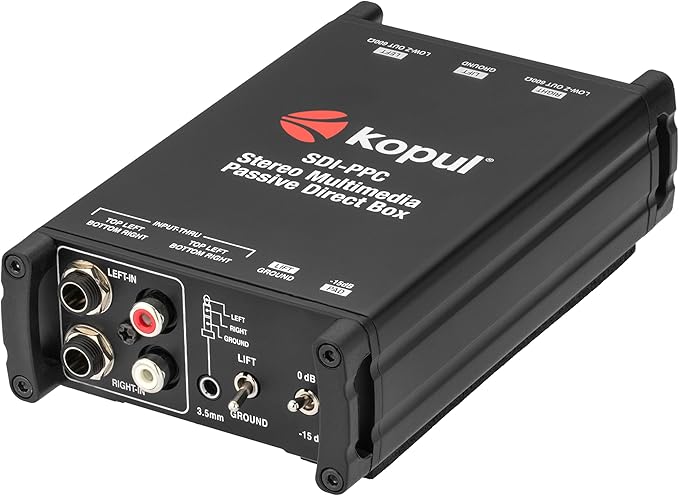

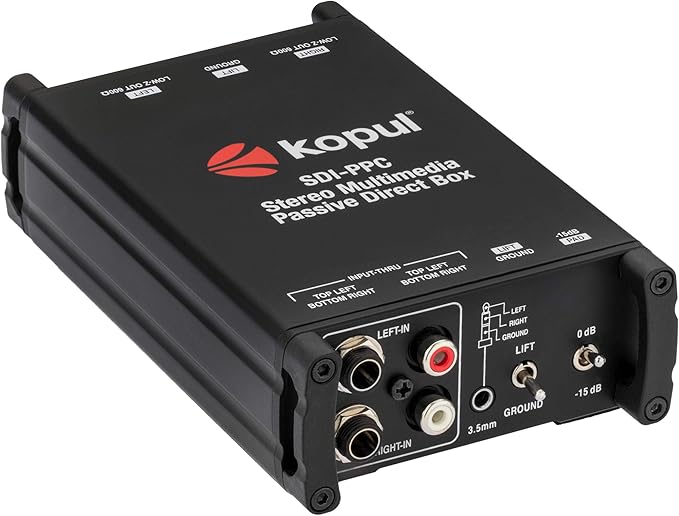

On the input side of the SDI-PPC, you’ll find two 1/4" TS jacks. These are suitable for instruments such as electric guitars, basses, and keyboards. If you're using only one of the 1/4" inputs, the other can function as a parallel output, allowing you to send the copy of the signal to an amplifier. This usage lets you split a guitar signal during recording, so you have the amped track in addition to a clean, DI’ed take to use during the mixing stage. A 3.5mm input is on hand for playing backing tracks from smartphones, tablets, and other compatible media players. Rounding out the input section are two RCA jacks for turntables, A/V connections, computer soundcards, and more. Two XLR connectors are provided for outputs.

Specs

Input Connectors: 2 x 1/4" TS inputs, phone type, 2 x RCA inputs, 1 x 3.5 mm stereo TRS input

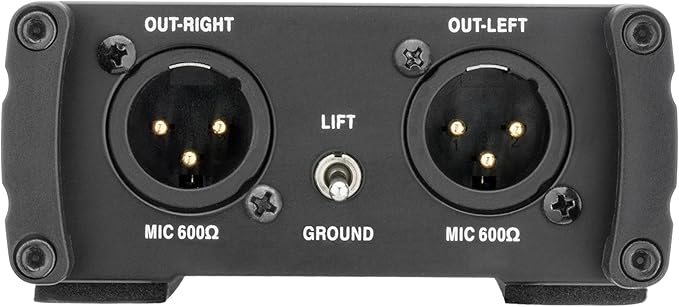

Output Connectors: 2 x XLR outputs
Dynamic Range: 128 dB
Frequency Range: 20 Hz to 18.5 kHz
Input Impedance: 67 kOhms
Output Impedance: 600 Ohms
Maximum Output: +18 dB at 20 Hz
Signal to Noise Ratio: 100 dB
Attenuation Switch: 0, -15 dB
Power Requirements: 48 V phantom power
Dimensions (L x W x H): 5.7 x 3.4 x 1.5" / 14.5 x 8.7 x 3.8 cm
Weight: 14.3 oz / 405.4 g

Packaging Info

Package Weight: 1.15 lb
Box Dimensions (LxWxH): 6.9 x 5.8 x 2.9"
