Specifications:
-HDMI 1.3 and HDCP 1.2 compliant
-Transmission protocol: HDBitT
-Transmission distance: Up to 130 feet (40 meters) at 1080p@60Hz
-Supports digital stereo 7.1-channel, PCM, DTS, AC3 audio
-Supports full frequency IR signal from 20KHz to 60KHz
-Resolution: 480p / 720p / 1080i / 1080p@60Hz

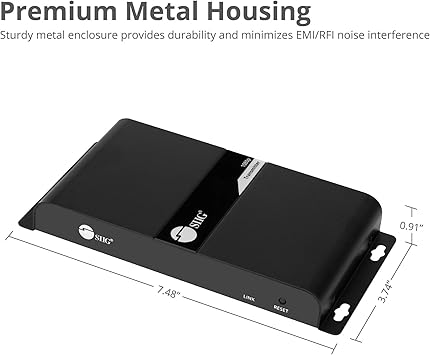

-Aluminum housing with wall mount design
Network cable: :
-UTP/STP CAT6/6a/7
-Wiring standard: T-568B
Power adapter:
-Input: 100-240V / 50-60Hz
-Output: DC 5V/3A for TX
-Output: DC 5V/1A for RX
-UL listed: E335801 / Level: VI
Requirements:
-HDMI source device, such as computers, game consoles, Blu-ray/DVD players, and media players
-HDMI displays, monitors, and HD TVs
-HDMI cables
-CAT6 Cable
Package Contents:

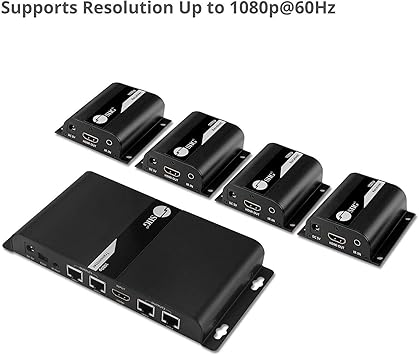

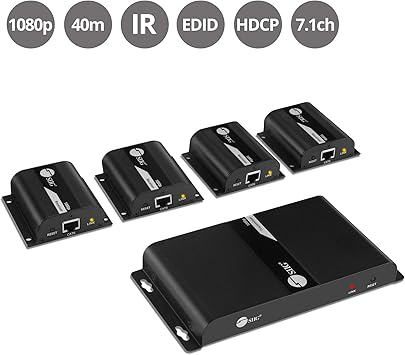

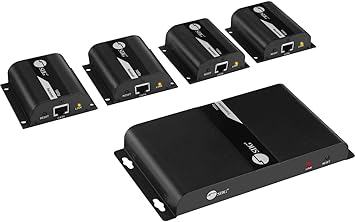

-4-Port HDMI Splitter over Cat6 Extender with IR - 40M (1x TX & 4x RX)
-Power adapter (5pcs)
-IR Blaster extension cable (1pc)
-IR Receiver extension cable (4pcs)
-Screw Kit
-User Reference Guide
