Product overview
The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS® XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco Catalyst Center, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.
The IE3200 series supports power budget of up to 240W for PoE/PoE+, shared across 8 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
Figure 1.

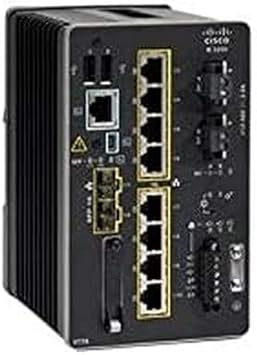

Cisco Catalyst IE3200 Rugged Series
Features and benefits
Table 1. Features and benefits
|
Feature
|
Benefit
|
|
Robust industrial design
|
● Built for harsh environments and temperature ranges (-40°C to +75°C)
● Fanless, convection-cooled with no moving parts for extended durability
● Hardened for vibration, shock and surge, and electrical noise immunity
● Complies with multi-industry specifications for automation, ITS, and substation environments
● Improves uptime, performance, and safety of industrial systems and equipment
● Covers a wide range of Power over Ethernet (PoE) application requirements
● Alarm I/O for monitoring and signaling to external equipment
|
|
Full Gigabit Ethernet interfaces
|
● Provides secure access for new high-speed applications in the industrial space
● Packs up to 10 ports of GE - 2x1 Gigabit Small Form-Factor Pluggable (SFP) uplinks, plus 8x1 Gigabit copper RJ45 downlink ports (with PoE+ or non PoE) in a small form-factor base system
● Connects high-speed wireless access points (802.11n, 802.11ac, 802.11ax)
● Enables High-Definition (HD) IP cameras and Programmable Logic Controllers (PLC)
● Delivers multiple rings and redundant ring topologies for new network configurations
● Extends geographical scalability where longer-distance connectivity is required
|
|
High-density industrial Power over Ethernet (PoE)
|
● Supports up to 8 PoE/PoE+ ports [Power budget - 240W]
● Controls costs by limiting wiring, distribution panels, and circuit breakers
● Reduces equipment needs, thus requiring less space and reducing heat dissipation
● Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points
|
|
User-friendly GUI, called WebUI
|
● Allows easy configuration and monitoring
● Eliminates the need for more complex terminal emulation programs
● Reduces the cost of deployment
|
|
SwapDrive, a zero-configuration replacement
|
● True zero-configuration and simple switch replacement in the event of a failure
● No networking expertise required
● Helps ensure fast recovery
|
|
IPv6 Ready Logo
|
● IPv6 Ready Logo Certified
|
Products overview
Table 2. Product feature sets
|
Product family
|
Platforms supported
|
Cisco IOS Software image (feature sets) supported
|
|
IE3000
|
IE3200
|
Network Essentials (default)
|
Product specifications
Table 3 highlights the hardware configuration for Cisco Catalyst IE3200 Rugged Series switches.
Table 3. IE3200 Hardware configurations
|
Product number*
|
Total ports
|
10/100/1000 RJ45 Copper ports
|
100/1000 SFP ports
|
Software license (Default)
|
PoE/
PoE(+) budget
|
|
IE-3200-8T2S-E
|
10
|
8
|
2
|
Network Essentials
|
N.A.
|
|
IE-3200-8P2S-E
|
10
|
8
|
2
|
Network Essentials
|
240W
|
Table 4 highlights the hardware specifications for Cisco Catalyst IE3200 Rugged Series switches.
Table 4. IE3200 Hardware specifications
|
Hardware specification
|
Cisco IE-3200-8T2S-E
|
Cisco IE-3200-8P2S-E
|
|
PoE power budget
|
Not applicable
|
240W1
|
|
Removable storage
|
USB2,3, SD card2
|
USB2,3, SD card2
|
|
Alarms
|
2 alarms in, 1 alarm out
|
2 alarms in, 1 alarm out
|
|
Console ports
|
1 RS-232 (via RJ-45), 1 USB Mini Type B
|
1 RS-232 (via RJ-45), 1 USB Mini Type B
|
|
Power inputs
|
Dual DC power inputs
|
Dual DC power inputs
|
1In order to achieve the 240W power budget, the minimum power requirements as specified in Table 7 for the switch need to be considered when selecting a power supply.
2The USB and SD card are optional and are not shipped by default with the switch.
3
Table 5 highlights the physical configuration for Cisco Catalyst IE3200 Rugged Series switches.
Table 5. IE3200 physical configurations
|
Physical specifications
|
Cisco IE-3200-8T2S-E
|
Cisco IE-3200-8P2S-E
|
|
Dimensions (H x W x D)
|
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5 cm
|
6.0 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5 cm
|
|
Weight
|
3.8 lbs
1.7 kg
|
3.8 lbs
1.7 kg
|
|
Mounting
|
DIN rail
|
DIN rail
|
Figure 2.
Cisco Catalyst IE3200 dimensions
Table 6 highlights the performance and scalability features for Cisco Catalyst IE3200 Rugged Series switches.
Table 6. IE3200 performance and scalability features
|
Features
|
Cisco IE-3200-8T2S-E
|
Cisco IE-3200-8P2S-E
|
|
Forwarding rate
|
Line rate for all ports and all packet sizes
|
Line rate for all ports and all packet sizes
|
|
Number of queues
|
8
|
8
|
|
Unicast MAC addresses
|
8K
|
16K
|
|
Internet Group Management Protocol (IGMP) multicast groups
|
1K
|
1K
|
|
No. of VLANs
|
256
|
256
|
|
Spanning Tree Protocol (STP) instances
|
128
|
128
|
|
Access Control Entries (PACL/VACL/RACL)
|
3K
|
3K
|
|
DRAM
|
2 GB
|
2 GB
|
|
Flash (User Accessible)
|
1.5 GB
|
1.5 GB
|
|
SD card capacity1
|
4 GB, 16 GB
|
4 GB, 16 GB
|
|
Jumbo Frames
|
8996 bytes
|
8996 bytes
|
