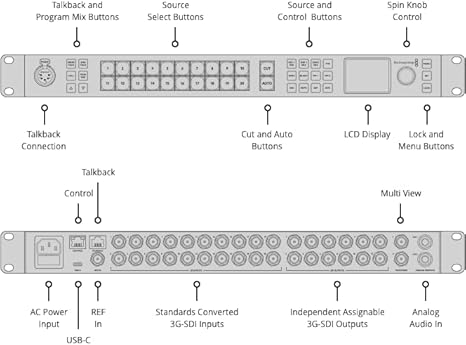

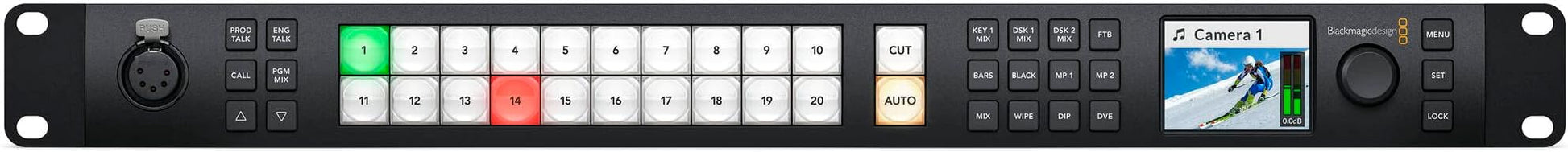

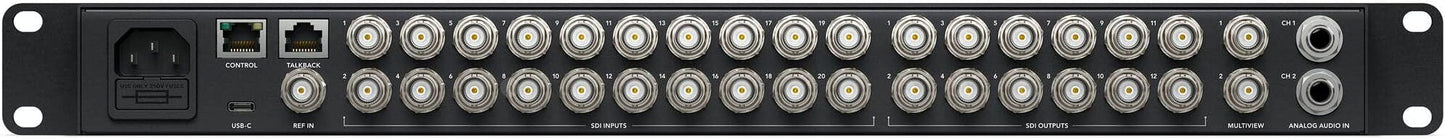

High-definition live production switcher packed with advanced features. The dual M/E effect banks design includes 20 3G-SDI inputs with standard conversion and 12 independent 3G-SDI aux outputs. It also offers USB webcam output, processor for SuperSource, DVE, chromatic keys, media player, multiview and much more. Also includes talkback function and a professional Fairlight audio mixer with EQ and dynamics. Connections Video Inputs 20 Video Outputs 12 SDI Transmission 1.5G, 3G Audio Inputs 2 x 1/4 inch Balanced Jacks, 1 x 5-Pin XLR for Talkback Audio Outputs 1 x 5-pin XLR for Talkback SDI Audio Inputs Two channels of integrated audio on SDI inputs Two channels of integrated audio on SDI inputs Two channels of integrated audio on the SDI ConnTimecode sessions No Tri-Sync or Black Burst reference input Resynchronization of sources On 20 inputs Frame rate and format converters On 20 inputs SDI aux outputs Any of the 12 SDI outputs Preview SDI outputs Any of the 12 SDI outputs Program SDI outputs Any of the 12 SDI outputs PGM SDI output with reduction of resolution No Webcam output 1 x USB-C at 720p or 1080p in the frame rate of the PGM Multiview 2 x 3G-SDI Ethernet control panel connection. Direct connection between the panel and the chassis, or via the network Internal timecode generator Yes RJ45 talkback for third-party talkback systems Tally output Connecting the device Blackmagic Design GPI and Tally Interface via ethernet (not included) Ethernet 10/100/1000 BASE-T Computer interface 1 x USB-C compatible with USB 3.1 Gen 1 (5Gb/s)
