Home Baieyu Mini Computer 8GB RAM DDR4 128GB SSD Fanless Industrial Mini PC DDR4 Core i5-7300U Mini Desktop Computer Windows 10 Pro 2 HD RS232 COM Fanless PC Industrial PC Dual Band WiFi&BT4.2

Baieyu Mini Computer 8GB RAM DDR4 128GB SSD Fanless Industrial Mini PC DDR4 Core i5-7300U Mini Desktop Computer Windows 10 Pro 2 HD RS232 COM Fanless PC Industrial PC Dual Band WiFi&BT4.2

Baieyu Mini Computer 8GB RAM DDR4 128GB SSD Fanless Industrial Mini PC DDR4 Core i5-7300U Mini Desktop Computer Windows 10 Pro 2 HD RS232 COM Fanless PC Industrial PC Dual Band WiFi&BT4.2

$618.00

Product Description Small But Powerful Mini Industrial Computer Baieyu Mini PC Satisfies to You! Superior Configuration: This industrial fanless mini PC is equipped with 8th Generation Core i5 Processors, (4 cores and 8 threads, 1.6GHz, Turbo 3.9GHz, support 6MB smart cache), faster and more advanced. Unique Advantage: This Mini PC not only...

Categories :

Why Choose Us ?

Official Herschel stockist Australian warranty assistance & support Australian shipping & returns.Customer first experience environmentally focused

Returns

Return this product within 100 days if you change your mind. Get a refund/replacement & free return shipping if it arrives damaged or not as described

Shipping

Free if stated near price. $9.95 Australia wide (up to 10 items). $18.95 for Express Post (generally 1 business day).

Product Description

Small But Powerful Mini Industrial Computer

fanless industrial pc mini pc mini pc windows 11 mini pc i7 mini computer windows 11

Baieyu Mini PC Satisfies to You!

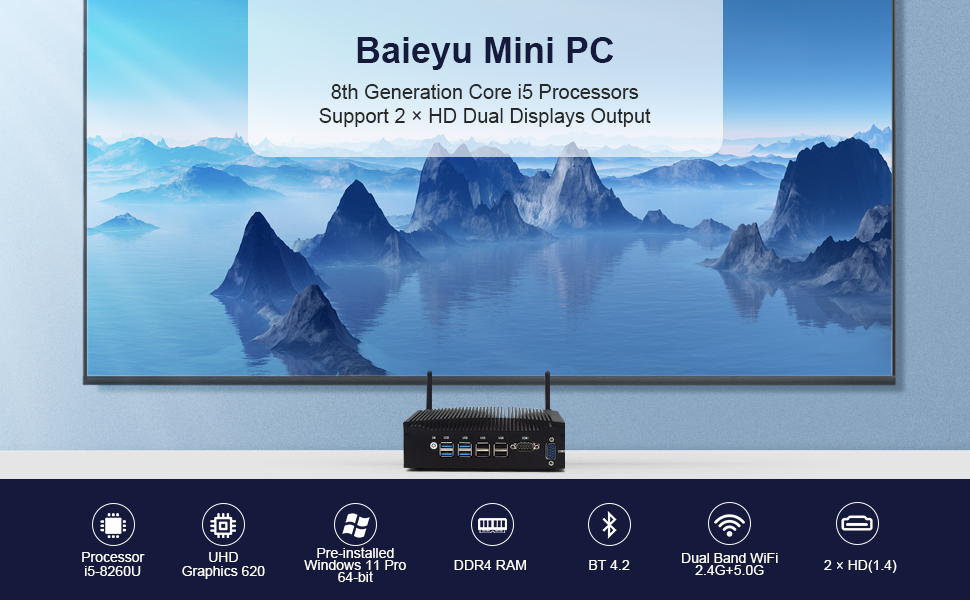

Superior Configuration: This industrial fanless mini PC is equipped with 8th Generation Core i5 Processors, (4 cores and 8 threads, 1.6GHz, Turbo 3.9GHz, support 6MB smart cache), faster and more advanced.

Unique Advantage: This Mini PC not only performs great, but is also energy efficient and quiet. The power consumption is only 15W, just like a Mini PC on a diet. The combination of fanless and aluminum alloy casing not only efficiently dissipates heat, but also provides you with a comfortable and quiet working or entertainment environment.

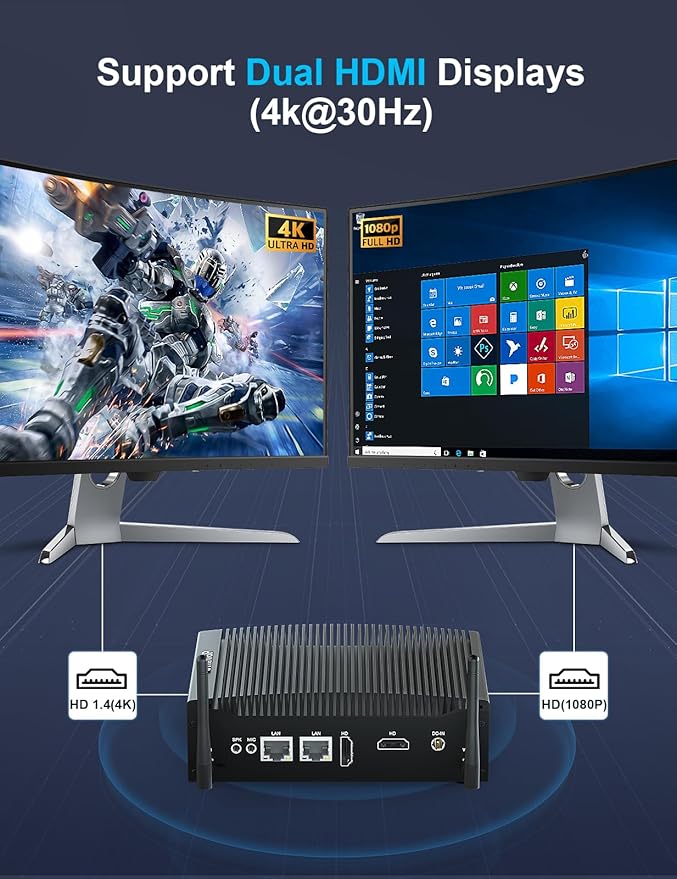

Support Dual-screen Display: Equipped with 2 HD ports (4K@30Hz 4096*2304 dual-screen display), dual monitors will double the work efficiency. At the same time, it brings you amazing visual effects, suitable for home entertainment, movies, video conferencing, and brings you the best playback experience.

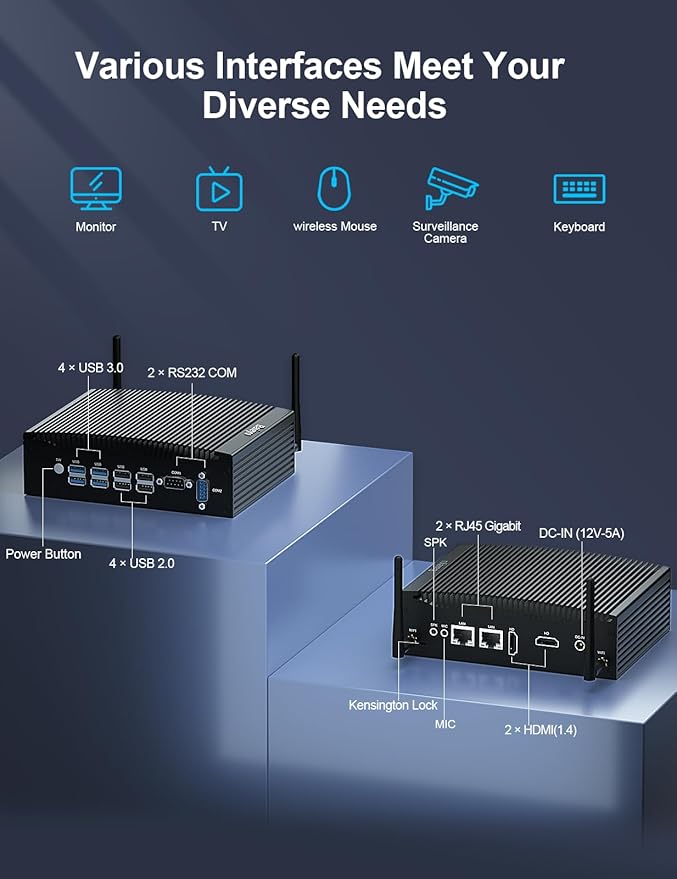

Rich I/O Interfaces: 2 × RJ45, Realtek 8168/8111(1000M), 1 × 3.5MM audio output, 1 × 3.5MM audio input, 1 × DC (5.5×2.5MM) input port, 4 × USB 2.0, 4 × USB 3.0, 2 × DB 9Pin RS232, 1 × Kensington Lock, 2 × antenna interface, used to connect WiFi module\3G\4G module.

Fanless Mini PC Technical Specifications

CPU	Core i5-8260U (6MB Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
Processor Graphics	UHD Graphics 620
TDP	15W
Memory Types & Speed	2 × DDR4 SO-DIMM 260Pin & 2133 MHz
Max Memory Size	64GB
Storage	1 × M.2 2280 slot, support M.2 SATA or NVMe (PCIE 3.0X4) SSD(not included), Max 2TB. 1 × SATA 3.0 for 2.5 inches SATA SSD/HDD(not included), Max 2TB
Operate System	Pre-install Windows 11 Pro, Support Linux, Ubuntu and other operating systems.
Video Output Ports	2 × HD 4096*2160@30Hz(4K)
COM Ports	2 × DB 9Pin RS232 COM ports
USB Ports	4 × USB 3.0 ports, 4 × USB 2.0 ports
LAN	2 × RJ45, Realtek 8168/8111(1000M)
WiFi & BT	Dual Band WiFi (2.4G+5.0G) and BT 4.2
BIOS	Support Auto Power On, Wake On LAN, RAID, PXE
Work Environment	-10℃--60℃(14F~140F), 30%--90% Humidity
Case Material	Full Brushed Aluminum Alloy
Mini PC Size & Weight	17.0 × 12.6 × 5.8cm (6.7 × 5.0 × 2.3inches); Net 1.1kg(2.4lb)

Fanless Industrial Mini PC i5-8260U Processor

Baieyu Industrial Fanless Mini Desktop PC with Multiple Functions

minisforum compact computer mini pc i9 computer i7 computers

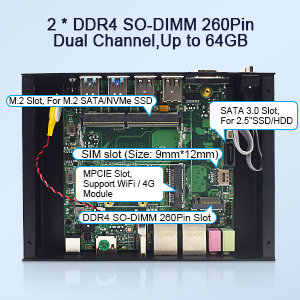

Dual-channel DDR4 RAM Memory

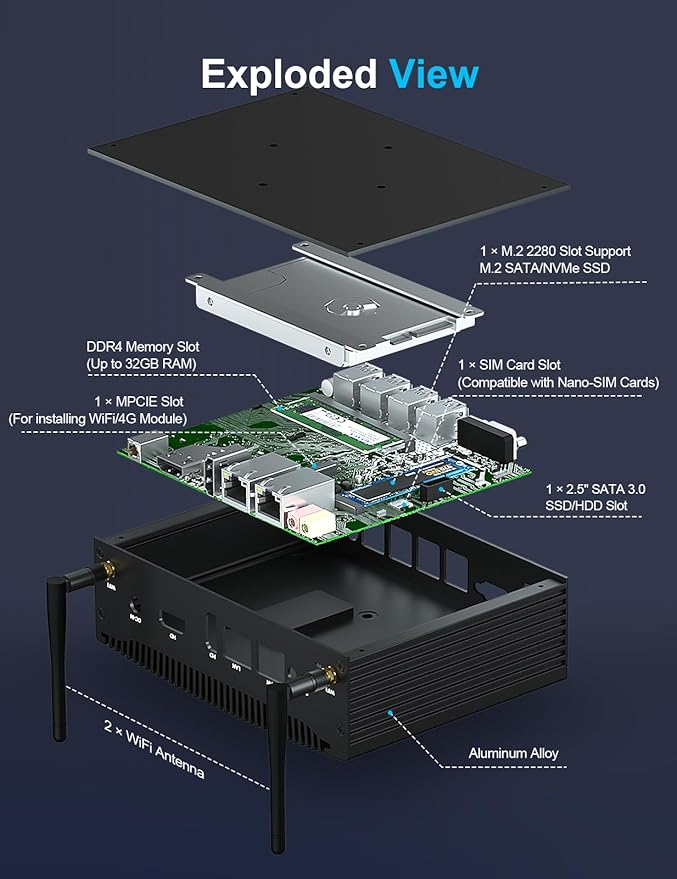

The powerful mini computer is equipped with DDR4 SO-DIMM 260-pin memory, which supports a maximum of 64GB, and the memory frequency is 2133MHz. If capacity is a concern you can expand it up to 2TB with a 2.5" SATA 3.0 hard drive/SSD (not included). Fanless Mini PC Built-in M.2 SSD (M.2 2280 SATA SSD / NVME SSD PCIE 3.0 x 4) for higher speed and performance.

desktop computers desktop computer ordinateur de bureau mini pc windows 10 pro fanless computer

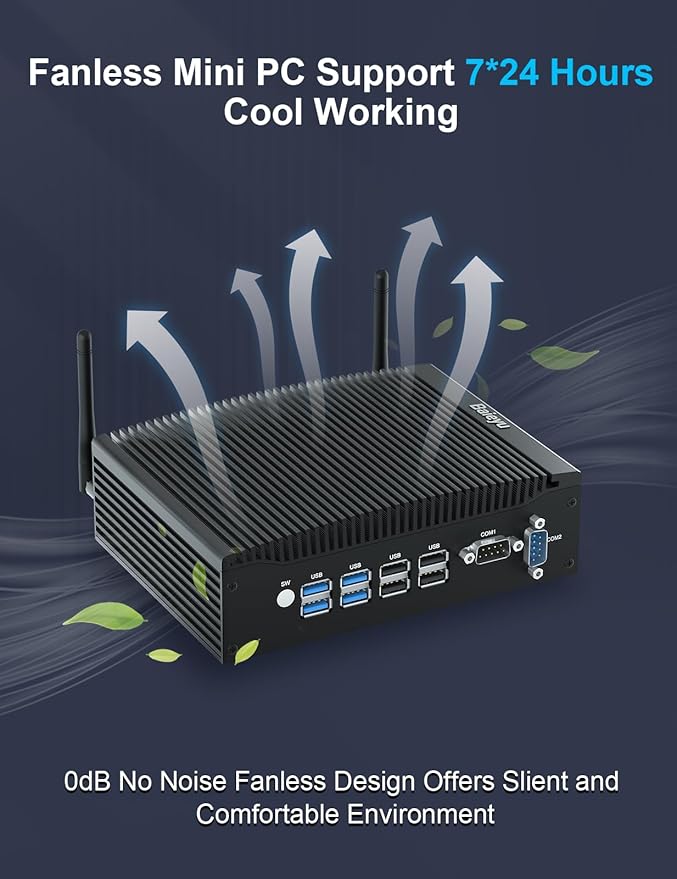

Efficient Heat Dissipation

Unique fanless design, fanless computer with brushed metal casing, this design surface desktop computer has excellent robustness and cooling capabilities. Don't worry about heat dissipation, the fanless mini PC doesn't use fans to keep cool, ensuring completely noiseless and maintenance-free operation for a quiet working and living experience.

fanless pc mini pc micro pc computer windows 11

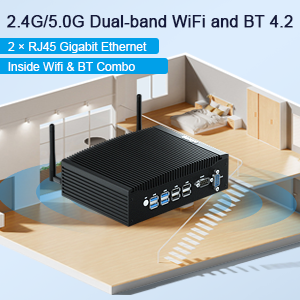

Faster and More Stable

The micro computer has built-in dual-band WiFi, which supports wireless signals in two different frequency bands of 2.4GHz and 5.0GHz. In addition, BT 4.2 and RJ45 Ethernet provide faster and stronger network signals to meet the needs of high-definition big data wireless transmission.

mini pc i7 10810u micro pc desktop computer windows 11 intel nuc pfsense windows 10 mini pc 64gb

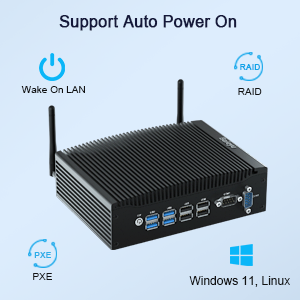

Support Auto Power On

Fanless desktop computer is pre-installed with Windows 10 Pro, and also supports other operating systems such as Ubuntu and Linux. Other functions supported: Build RAID, support RAID0 or RAID1/Wake on Lan (BIOS is enabled by default)/Auto Power On, realized by moving the jumper position of PWRON1 on the motherboard (default is not enabled)/Network boot (PXE only supports Legacy mode).

small computer mini industrial pc pc desktop micro pc mini pc i7 computer minisforum computers

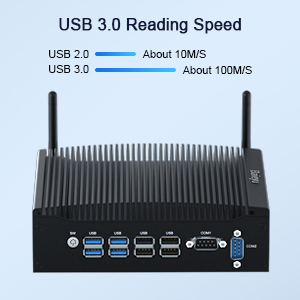

4 USB 3.0 + 4 USB 2.0

Compared with USB 2.0, USB 3.0 has a faster transmission speed, and USB ports are also the most common port types in computers. Baieyu industrial mini PC has designed a total of 8 USB ports to provide more convenience for daily use or work. At the same time, the USB port has high compatibility and can be connected with various devices, such as keyboard, mouse, printer, telephone, camera, etc.

small pc windows computer desktop mini computer tower industrial pc netgate mini industrial fanless

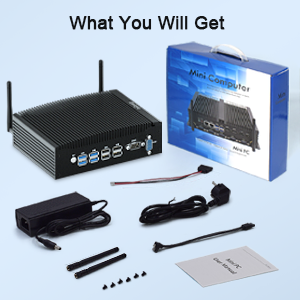

What You Will Get

1 × Fanless PC

2 × WiFi Antenna

1 × Power Adapter

1 × User Manual

1 × VESA Mount

1 × Set of SATA power and data cables(for 2.5'' hard drive installation)

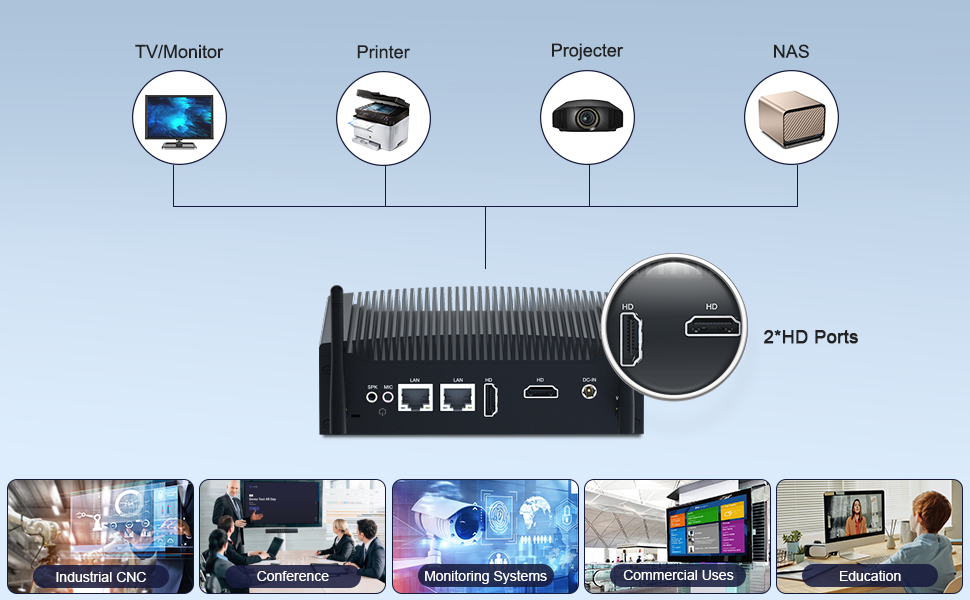

Multi-scenario Application

fanless mini computer fanless pc mini desktop fanless indows 10 pc mini desktop pc windows 11

FAQ:

Q1: Does this mini PC support Auto Power On?

A1: Yes, our mini computer supports auto boot. It is realized by moving the jumper position of PWRON1 on the motherboard.

Q2: Does the fanless industrial PC support installing windows 11?

A2: Yes, our industrial minicomputers come with Windows 11 pro pre-installed and also support other systems such as Windows 10.

Q3: What are the shortcut keys for entering BIOS and quick boot items?

A3: Delete to enter Bios Setup, F11 to enter Boot Menu.
