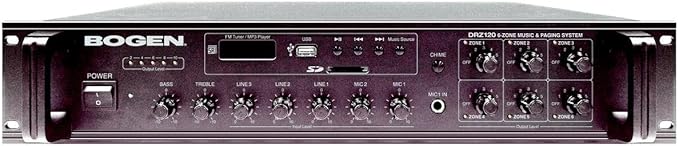

Bogen DRZ120 6-Zone Music & Paging System
The Bogen DRZ120 6-Zone Music & Paging System is a self-contained commercial audio solution designed for small- to medium-sized facilities that need reliable background music and paging across multiple areas. It combines a 120W amplifier, digital FM tuner, MP3 player, microphone inputs, and line-level inputs in a single rack-mountable unit.
The system can distribute music and paging to up to six individual zones, making it suitable for offices, restaurants, schools, retail facilities, hospitality environments, and other commercial installations.
Key Features
-
Model: Bogen DRZ120
- 6-zone music and paging system
- 120W amplifier
-
Supports 4Ω, 8Ω, 16Ω, and 70V speaker systems
-
Connects to up to 6 individual music/paging zones
-
Built-in digital FM tuner
-
Built-in MP3 player
-
Supports MP3/WAV playback through USB and SD card
-
7 audio inputs: 4 microphone and 3 line inputs
- Bass and treble controls
- 5-segment LED output-level indicator
- Rack-mountable design
-
Built-in priority chime function
- VOX-activated microphone priority/muting
- 120V AC, 60Hz operation
Multi-Zone Audio Distribution
The DRZ120 allows music and paging to be distributed across multiple areas while providing control over individual zones. This makes it practical for installations where different sections of a facility require localized audio coverage.
Music & Paging Sources
The integrated digital FM tuner provides PLL-synthesized tuning, while the built-in MP3 player can play compatible MP3 and WAV files from USB or SD media. The system also provides multiple microphone and line inputs for connecting external audio sources.
Priority Paging & Chime
For announcements, the primary microphone input can use VOX-activated priority muting to reduce or mute program audio while paging. A dedicated chime function provides an audible alert tone across the outputs before or during announcements.
Ideal Applications
The Bogen DRZ120 is suitable for:
- Restaurants and cafés
- Schools and educational facilities
- Offices
- Retail stores
- Hotels and hospitality
- Commercial buildings
- Public facilities
- Small- to medium-sized paging systems
- Background music installations
Product Specifications
Manufacturer: Bogen Communications
Model: DRZ120
Product Type: 6-Zone Music & Paging System
Amplifier Output: 120W
Speaker Compatibility: 4–16Ω / 70V
Zones: Up to 6
Audio Inputs: 4 MIC + 3 LINE
Media: USB / SD / MP3 / WAV
Tuner: Digital FM with PLL synthesizer
Mounting: Rack-mountable
Power: 120V AC, 60Hz
Package Includes:
- 1 × Bogen DRZ120 6-Zone Music & Paging System
A versatile all-in-one commercial audio solution for multi-zone paging, background music, announcements, and professional sound distribution.
