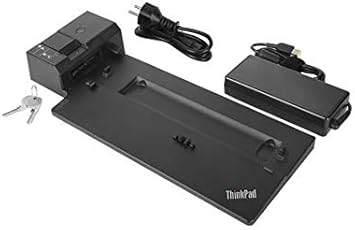

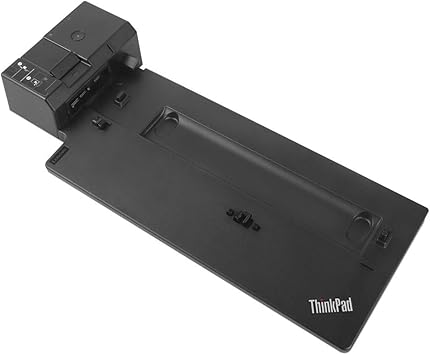

Lenovo ThinkPad Pro Docking Station 40AH0135US – 135W, U.S. Standard Plug
The Lenovo ThinkPad Pro Docking Station (40AH0135US) is an enterprise-class mechanical docking station designed for compatible ThinkPad notebooks. It provides a convenient way to connect external displays, USB peripherals, networking, and other accessories through a single docking setup.
Designed with a proprietary ThinkPad side-docking connector, the Pro Dock provides a secure, driver-free docking experience for compatible ThinkPad systems. It also supports rapid charging and features a mirrored power button for convenient desktop operation.
Key Features
-
Model: ThinkPad Pro Docking Station
-
Marketing Part Number: 40AH0135US
-
Dock Service Part Number: 01HY745
-
Power Adapter: 135W AC adapter
-
Power Adapter Part Number: 45N0364
-
U.S. Standard Power Cord: 42T5008
- Designed for compatible Lenovo ThinkPad notebooks
-
Proprietary side docking connector
- Supports rapid charging on compatible ThinkPad systems
- Integrated mirrored power button

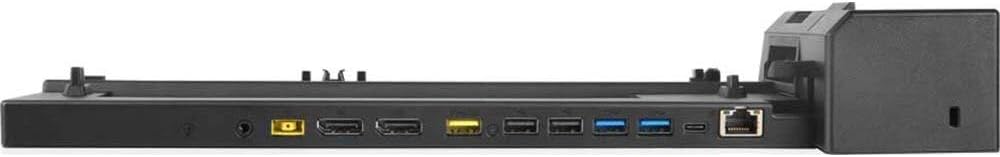

- 2 × DisplayPort outputs
- Multiple USB ports for peripherals
- Integrated Ethernet connectivity
-
Supports external displays up to 4096 × 2160 @ 60Hz on supported configurations
Convenient Desktop Connectivity
The ThinkPad Pro Dock allows compatible ThinkPad notebooks to connect to a range of desktop accessories without repeatedly connecting individual cables. Once docked, users can access external displays, USB devices, network connectivity, audio equipment, and other peripherals from a single workstation.
The dock features two DisplayPort outputs, multiple USB connections, Ethernet, and audio connectivity, making it suitable for professional office and enterprise environments.
Enterprise-Friendly Design
The mechanical side connector provides a secure connection designed specifically for compatible ThinkPad notebooks. Lenovo also designed the 40AH series for large enterprise deployments, with features such as rapid charging and support for system-dependent functions including Wake on LAN, PXE Boot, vPro, and DASH.
Package Includes
- 1 × Lenovo ThinkPad Pro Docking Station 40AH
- 1 × 135W AC Power Adapter
- 1 × U.S. Standard Power Cord
- Setup Guide / Warranty Documentation
- 2 × Security Keys
Compatibility
The 40AH0135US is designed for compatible ThinkPad notebooks equipped with the required side docking connector. It is not a universal USB-C docking station.
Please verify your ThinkPad model and docking-connector compatibility before purchasing.
Product Specifications
Brand: Lenovo
Product: ThinkPad Pro Docking Station
Model: 40AH0135US
Type: Mechanical Laptop Docking Station
Power Adapter: 135W
Video Output: 2 × DisplayPort
Maximum Supported Resolution: Up to 4096 × 2160 @ 60Hz on supported configurations
Connectivity: USB, DisplayPort, Ethernet, Audio
Power Plug: U.S. Standard
Application: ThinkPad Enterprise / Office Workstations
Note: Compatibility and available features depend on the connected ThinkPad model and system configuration. The dock uses Lenovo's proprietary side docking connector rather than a standard USB-C host connection.
