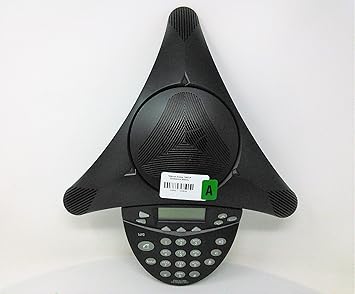

The Avaya 1692 IP Conference Phone is a professional full-duplex VoIP conference phone designed for clear, hands-free communication in conference rooms and meeting spaces. It features a high-resolution backlit LCD display, multiple sensitive microphones, and 360-degree audio pickup for effective room coverage.
The 1692 provides conference-room coverage of approximately 20 × 20 feet (6.1 × 6.1 meters). With two optional extension microphones, coverage can extend to approximately 20 × 30 feet (6.1 × 9.1 meters), making it suitable for larger conference tables and meeting rooms.
Key Features
-
Model: Avaya 1692 IP Conference Phone
-
Color: Dark Gray
- Full-duplex digital speakerphone
- 360-degree microphone coverage
-
Coverage up to approximately 20 × 20 ft
- Optional extension microphones for larger rooms
- High-resolution backlit LCD display
- 12-key dialing keypad
- Mute, redial, call, volume, and navigation controls
- Supports multiple call appearances
- Supports conference calling
- 10/100Base-TX Ethernet connection
-
Power over Ethernet (PoE) support
- Supports DHCP and static IP addressing
- Firmware upgrade capability
- Designed for Avaya IP telephony environments
VoIP & Audio Support
The Avaya 1692 supports G.711, G.722, G.729a, and Avaya Siren voice codecs. It also supports network quality-of-service features including IEEE 802.1Q VLAN, IEEE 802.1p, and DiffServ.
Conference Room Coverage
The built-in microphones provide coverage for conference rooms up to approximately 20 × 20 feet. For larger conference spaces, two optional extension microphones can expand coverage to approximately 20 × 30 feet.
Connectivity & Power
The phone uses a 10/100Base-TX Ethernet connection and can receive power through 802.3af Power over Ethernet (PoE). An optional local power solution can also be used depending on the installation.
Specifications
-
Product: Avaya 1692 IP Conference Phone
-

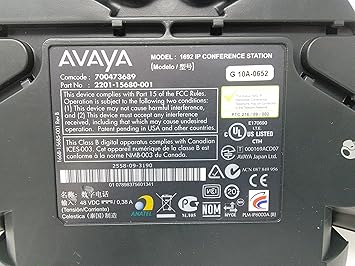

Part Number: 700473689
-
Type: Conference VoIP Phone
-
Color: Dark Gray
-
Ethernet: 1 × 10/100Base-TX
-
Voice Codecs: G.711, G.722, G.729a, Siren
-
Display: Backlit monochrome LCD
-
Speakerphone: Full-duplex digital
-
Power: 802.3af PoE / optional AC power solution
-
Microphones: Built-in multi-microphone system
-
Room Coverage: Approximately 20 × 20 ft
-
Extended Coverage: Approximately 20 × 30 ft with optional extension microphones
-
Dimensions: Approximately 36.8 × 31.1 × 6.4 cm
-
Weight: Approximately 0.8 kg
The Avaya 1692 IP Conference Phone is a solid choice for businesses, offices, conference rooms, and organizations using compatible Avaya IP telephony systems. Its full-duplex audio, wide microphone coverage, PoE connectivity, and optional expansion microphones provide a flexible solution for professional voice conferencing.
